Hydraulically Actuated Artificial Lifting (HAAL) Units
Artificial Lift
We have made a product which is very intelligent and safe with numerous features that the Conventional Sucker Rod Pumping Unit does not provide which is very helpful for the oil and gas company so that they can monitor and control the pumping unit in low oil reservoir well So that energy and cost is saved. We have been successfully tested in India oil fields. In production, maintenance and quality with costing wise is excellent to similar equipment from leading manufacturers and packaged solutions all over the world. Our breakthrough innovations in hydraulic rod pumping systems, progressing cavity pump systems and automation controls & monitoring are changing the way operators view their long-term production through artificial lift. Our artificial lift professionals will collaborate with you to properly evaluate well conditions and provide customized solutions, helping you to optimize your production for the life of your wells.
Let us be your new 24/7 production partner. And it also is very much better at safety than the conventional sucker rod pumping unit which can cause accidents which can lead to big losses special when there is crude oil involved.
Hydraulic Pumping Units
Our hydraulic pumping unit (HPU) is a cost-competitive, industry proven technology and is an integral part of our hydraulic rod pumping system, ideal for many oil and gas applications.

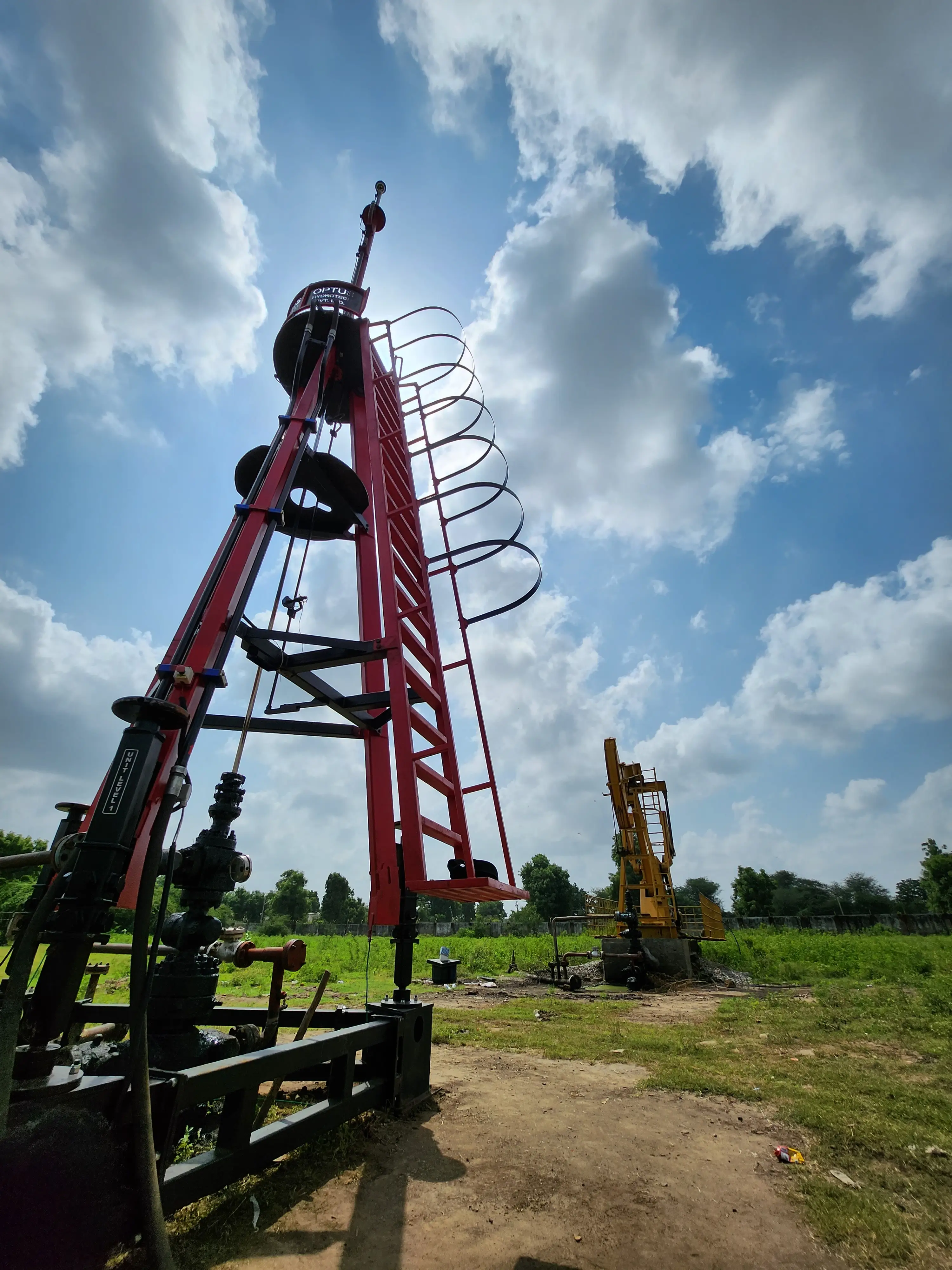

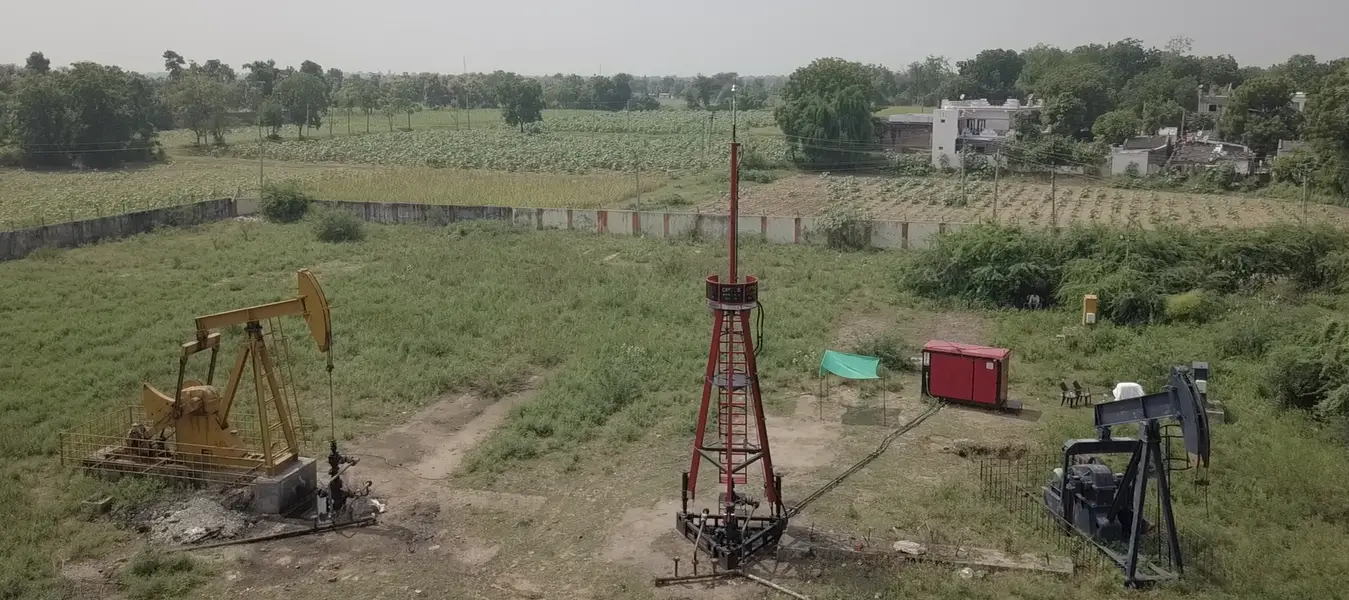

Lower set up costs and minimal ground disturbance make these low profile units ideal for pumping in areas where conventional pump jacks are not economical. This system consists of a mast with a single hydraulic ram which is mounted directly to the wellhead and driven by a power skid.

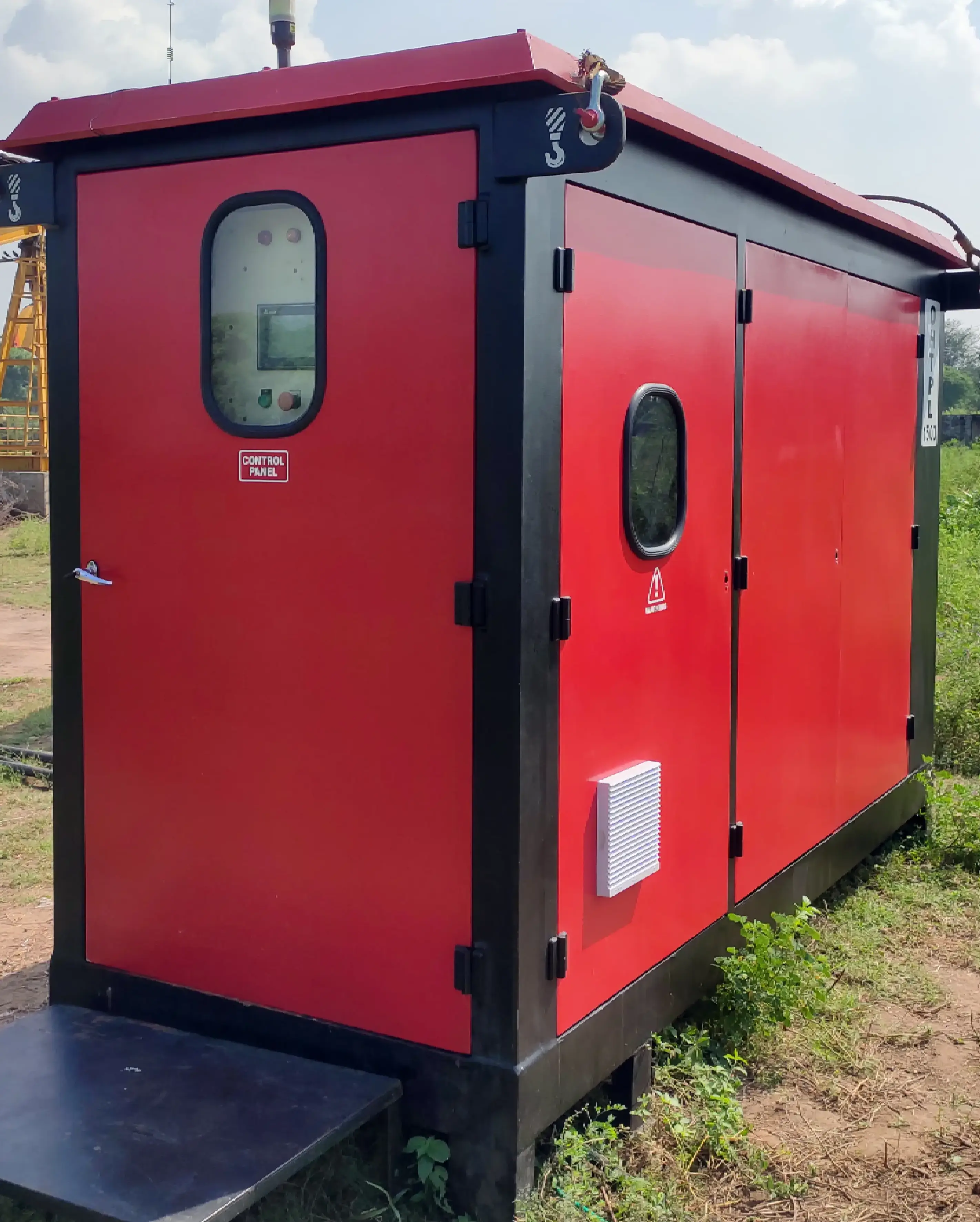

The power skid is field proven, certified and delivers the quality you need. With lifting capabilities up to 30,000 to 33,000 lbs. peak polished rod load and variable stroke length up to 160 inches.You can set delay at upside and lower side too.
Intelligent Electronic Control Panel System
We can check the current status of the Drive, information is necessary for timely decision-making on managing the operation of the Drive easily. We can also check Daily performance general, m3 - reflects the estimated volume of produced fluid per day and from the beginning of the drive's operation, due to the correct selection of the pump coefficient of the sucker rod pump, it is possible to display values close to the actual volume of produced fluid. We can also check amp load and rpm and stroke length too. You can also set the up speed and down speed using PLC Control. We can also remotely observe and manage production using choosing suitable stroke length, speed, set delay of stroke and increase production. If stocking an indicator of the magnitude of the high load during the upstroke and during the down stroke, above which the equipment will stop working at a time automatically.Echo meter is a device for measuring the dynamic level in a well by measuring the speed of acoustic waves in a gaseous medium.Dynamo meter is device for generating a dynagraph for oil level and surface level of the well of oil and gas. You can also save per minute stroke, hourly stroke and daily stroke data shit.
Advantage
- Installation and commissioning of the hydraulic actuator Unit within 3 to 4 hours without any delay. And the mobilization is also easy.
- Manage production remotely and evaluate the operation of the equipment in real time, using IOT advance system.
- Operating costs is decrease up to 30 to 35% or more using advance an automatic control system and intelligent Actuated panel mode.
- Less maintenance cost and save up to 35 to 40% of electricity using hydraulic system and panel control.
- User can set high production using automation selecting dynamic stroke length.
- Requiring minimal manpower for easily moved
- Manufactured in ISO 9001 certified facility
Comparison
- SRP Unit HAAl Units
- Full Forms SRP Is Conventional Pumping HAAl IS Hydraulically Actuated Artificial Lifting
- Installation Time 2-3 Days Only 3-4 hrs.
- Transportation/ Sipping Very Bulky and huge It’s Easy and small in size
- Weight Very High load due to heavy structure and spares too Its around 4 to 6 ton.
- Variable Stroke Not possible automatically Automatically Variable using actuated
- Mobilization And Demobilization Its Slower Its Faster
- Production Is not monitoring and increasing remotely Production is monitoring and increasing remotely
- Operating Cost Operation cost in high Operating cost is decrease up to 55 to 60%
- Maintenance Cost Maintenance Cost is more 30 to 35% save up to 35 to 40% of electricity using hydraulic system and panel control
- Safety Not used actuated Safety is given actuated using hydraulic system and panel control
- Man Power Required more manpower Required minimal manpower
Attributes
Our Product Range Is using the following parameters to be considered for Hydraulically Actuated Artificial Lifting Unit.
- Structural load capacity : Up to 14 ton
- Lift Capacity : 10 Ton
- Stroke length : up to 160”
- Stroke per Minute : Up to 6
- Structural load capacity : Up to 16 ton
- Lift Capacity : 12 Ton
- Stroke length : up to 160”
- Stroke per Minute : Up to 6
- Structural load capacity : Up to 18 ton
- Lift Capacity : 14 Ton
- Stroke length : up to 160”
- Stroke per Minute : Up to 6
- Structural load capacity : Up to 20 ton
- Lift Capacity : 16 Ton
- Stroke length : up to 160”
- Stroke per Minute : Up to 6
- Structural load capacity : Up to 20 ton
- Lift Capacity : 16 Ton
- Stroke length : up to 160”
- Stroke per Minute : Up to 6
- Structural load capacity : Up to 22 ton
- Lift Capacity : 18 Ton
- Stroke length : up to 160”
- Stroke per Minute : Up to 6
